Yamaha TX802 Replacement LCD Display Blue Backlight 12 Month Warranty
Description

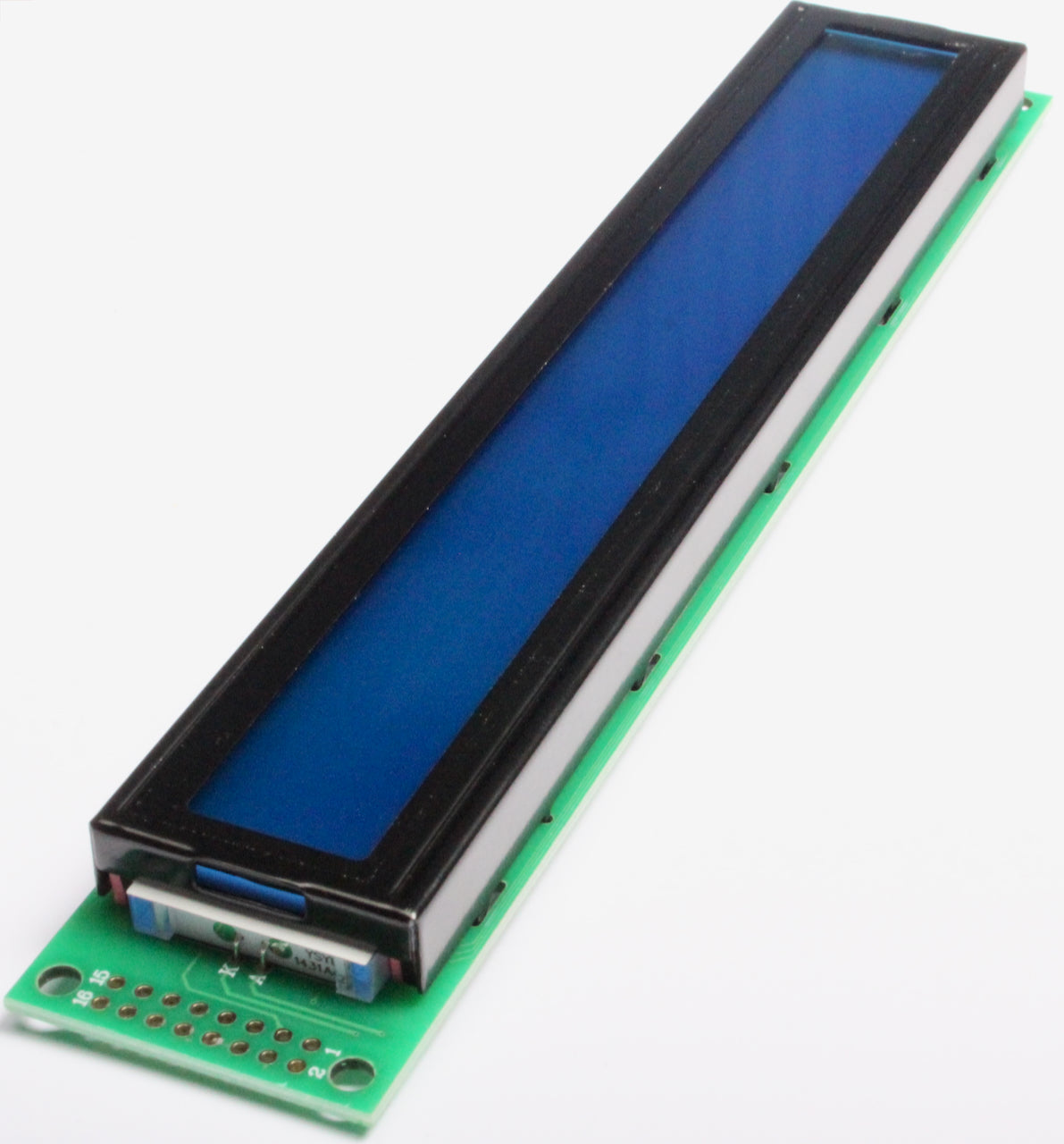

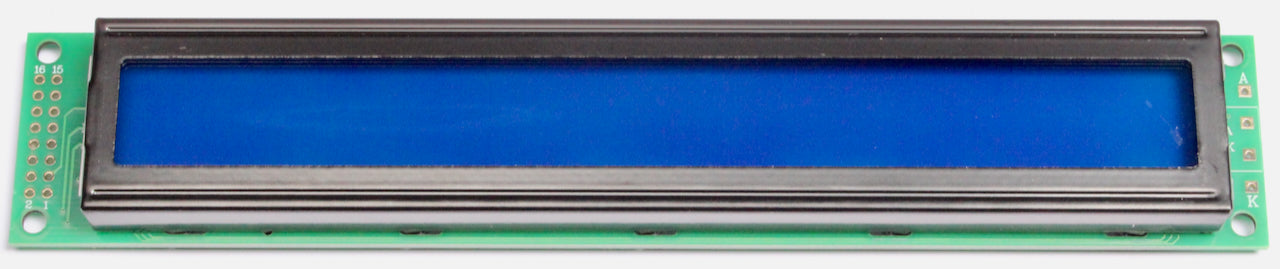

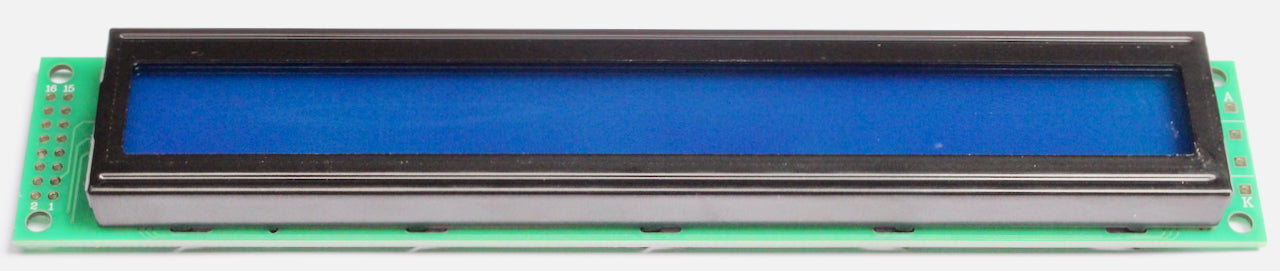

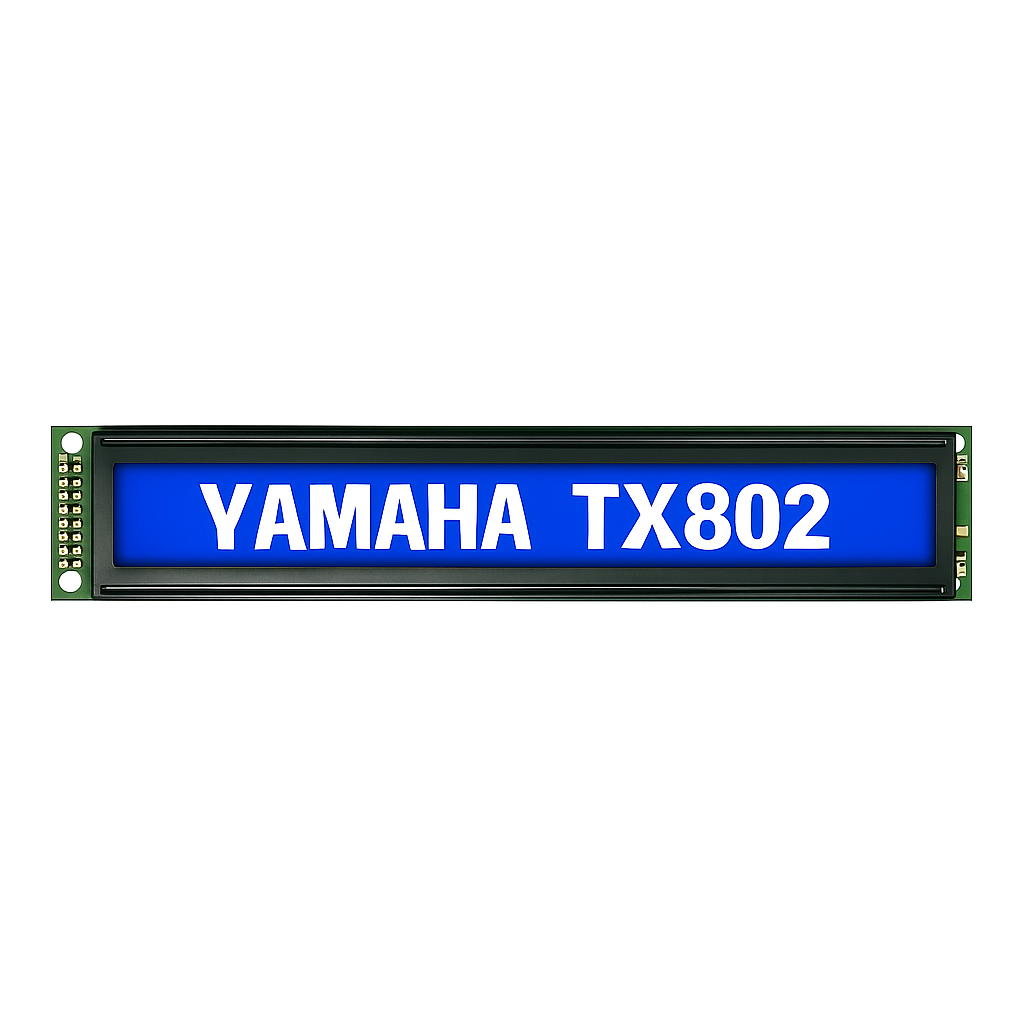

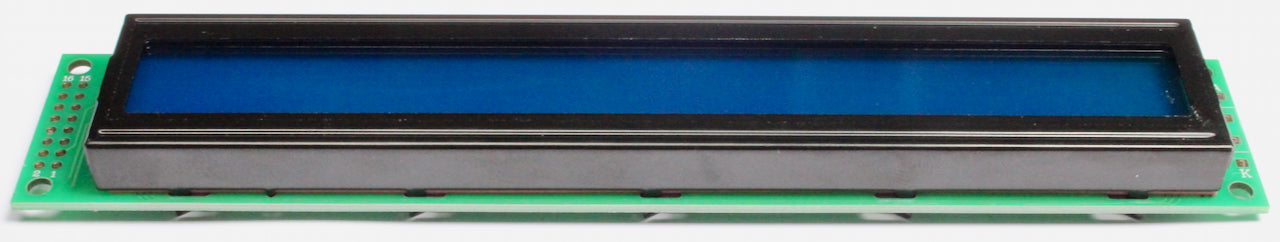

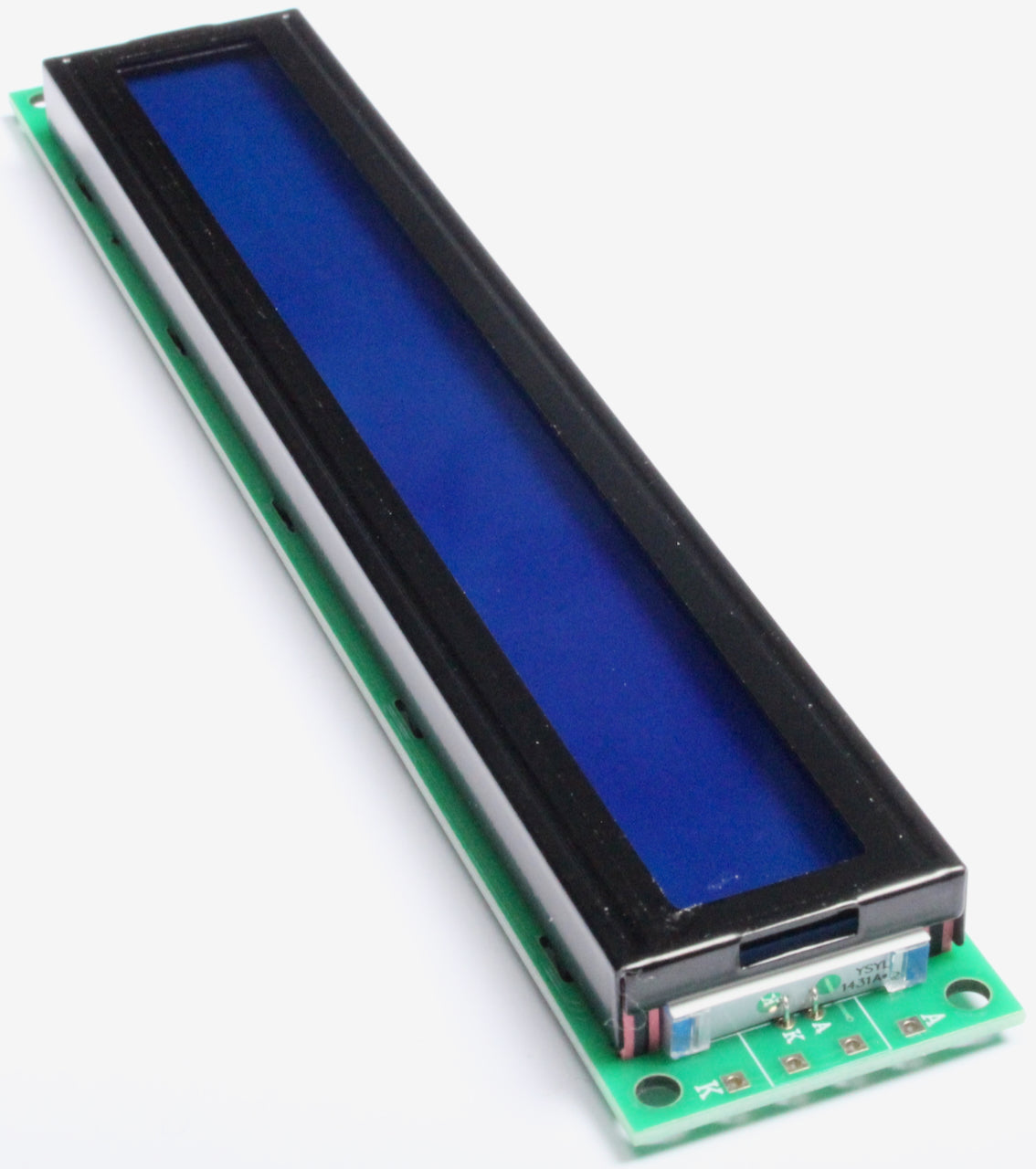

Yamaha TX802 Replacement LCD Display
Blue Backlight (please see our listings for other colours)
12-Month Warranty:
Buy with confidence – this display comes with a 12-month warranty against manufacturing defects. If you experience any issues related to the build or performance of the display during this period, we’ll be happy to offer a replacement or refund.
Item Description:
Refresh your Yamaha TX802 with this brand-new 40-character, 2-line LCD display – a high-contrast, direct-fit replacement for dim, faded, or unresponsive originals. Designed for seamless integration and crisp visibility, this display brings your synth’s screen back to life.
Key Features:
· Direct replacement for Yamaha TX802

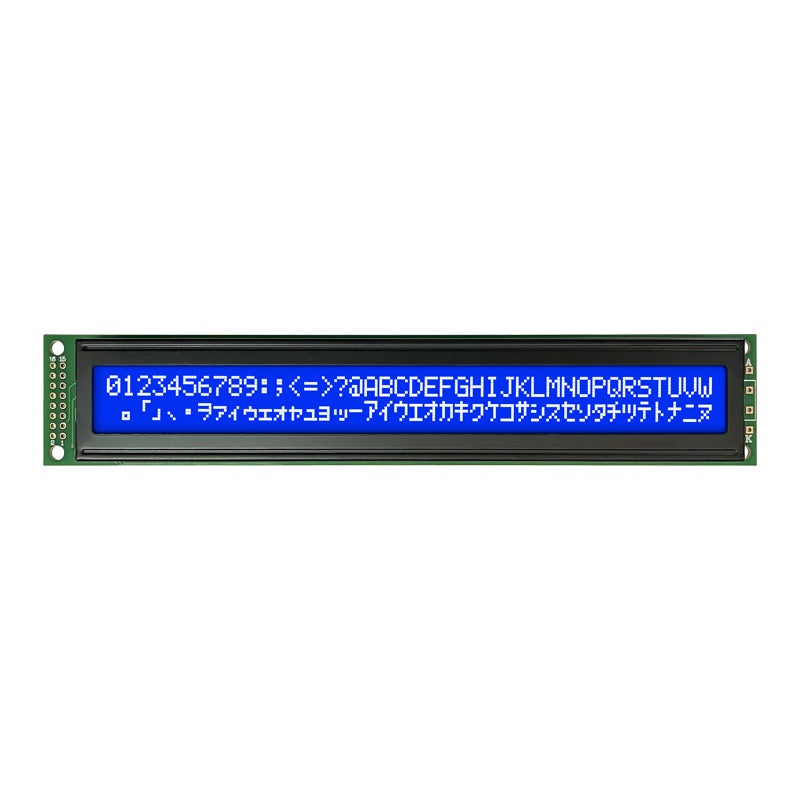

· 40 characters x 2 lines (5x8 dot format)
· Available in Yellow/Green (black text) or Blue (white text)
· Bright LED backlight with long service life
· Standard 16-pin parallel interface – plug and play
· Fully compatible with original mounting points
· No soldering required if replacing identical pinout unit
Technical Specs:
· Character Format: 40x2
· Display Area: 147.0mm × 23.2mm
· Module Size: 182.0mm × 33.5mm × 13.5mm
· Operating Voltage: 5V
· Interface: 16-pin parallel
· Controller: ST7066U or equivalent
· Backlight: LED
Why Buy This?
✅ UK stock – fast dispatch
✅ Designed to restore your Yamaha TX802 screen with vivid clarity
✅ Fully tested and ready to install
✅ Trusted by synth techs and music gear restorers
✅ Anti-static packaging for safe delivery
Ordering Options:
This listing is for a blue backlight – please see our other listings for additional colours.
This listing is for the LCD display only – keyboard not included. Installation is straightforward for anyone familiar with basic electronics or keyboard maintenance.
📌 Note: Our warranty covers the display module itself and does not include installation costs or other consequential losses.
